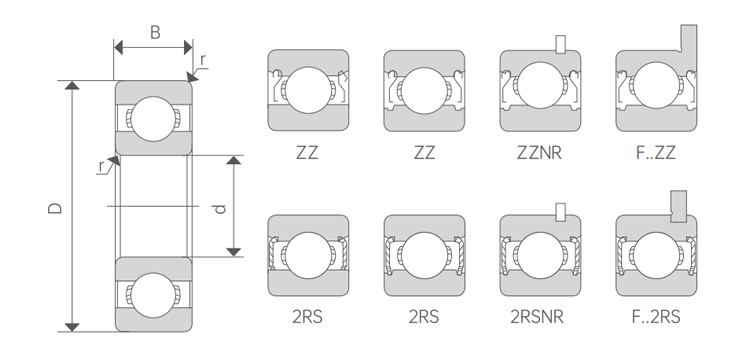

Model | Dimension | Basic Load Roting | Balls | Limiting Speed (r/min) | Weight (approx.) | |||||
| d | D | B | Cr | Cor | Qty | Dia. | Grease | Oil | g | |
| mm | mm | mm | N | N | PCS | mm | ||||
623 | 3 | 10 | 4 | 582 | 196 | 6 | φ1.588 | 40000 | 48000 | 1.6 |
624 | 4 | 13 | 5 | 1355 | 480 | 7 | φ2.381 | 40000 | 48000 | 3.2 |
625 | 5 | 16 | 5 | 1470 | 600 | 8 | φ2.381 | 36000 | 43000 | 5.1 |
| 626 | 6 | 19 | 6 | 2590 | 1037 | 7 | φ3.500 | 32000 | 40000 | 8.6 |
| 627 | 7 | 22 | 7 | 3300 | 1370 | 7 | φ3.969 | 30000 | 36000 | 13.1 |
| 628 | 8 | 24 | 8 | 3350 | 1430 | 7 | φ3.969 | 28000 | 34000 | 17.0 |
| 629 | 9 | 26 | 8 | 4557 | 1953 | 7 | φ4.763 | 28000 | 34000 | 19.1 |
| 6200 | 10 | 30 | 9 | 5110 | 2380 | 8 | φ4.763 | 24000 | 30000 | 32.0 |
| 6201 | 12 | 32 | 10 | 6808 | 3051 | 7 | φ5.953 | 22000 | 28000 | 37.0 |
| 6202 | 15 | 35 | 11 | 7450 | 3700 | 8 | φ5.953 | 20000 | 24000 | 45.0 |
| 6203 | 17 | 40 | 12 | 9560 | 4780 | 8 | φ6.747 | 17000 | 20000 | 65.0 |
| 6204 | 20 | 47 | 14 | 12840 | 6553 | 8 | φ7.938 | 15000 | 18000 | 106.0 |
| 6205 | 25 | 52 | 15 | 14020 | 7930 | 9 | φ7.938 | 13000 | 15000 | 128.0 |
| 6206 | 30 | 62 | 16 | 19460 | 11310 | 9 | φ9.525 | 11000 | 13000 | 199.0 |
| 6207 | 35 | 72 | 17 | 25670 | 15300 | 9 | φ11.112 | 9500 | 11000 | 288.0 |
| 6208 | 40 | 80 | 18 | 29520 | 18140 | 9 | φ12.000 | 8500 | 10000 | 366.0 |
| 6209 | 45 | 85 | 19 | 31663 | 20736 | 10 | φ12.000 | 7500 | 9000 | 380.0 |
| 6210 | 50 | 90 | 20 | 35065 | 23225 | 10 | φ12.700 | 7100 | 8500 | 450.0 |
